Improving the performance of functions

Recently I had to employ functions to perform a kind of name resolution on a column within the database. The database had a user table with usr_name and usr_id and then all other FK tables used usr_id . Within the procedures we could naturally do joins to fetch the username but there were many other tables similar to Users table. So we would end up having to do many different joins every time on each procedure where additional details were required.

The point here is that we had to use functions since it made a lot of sense, instead of doing joins with 8 different tables to fetch 8 different types of names. However this also posed the problem of having to work with code that was inherently inefficient. I have always asked developers to avoid using functions where possible to help improve performance but this time we needed ease of coding along with decent performance. As far as options go we could use scalar values functions or table values functions. The very nature of these two types of functions is different. As its name suggest a scalar function returns only one value, i.e. one input one output usually this works for performing calculations like service tax etc. Table values functions on the other returns a table. Best used for things like fetching a list of addresses when a zip code is passed or something like that. Naturally in my scenario in terms of pure logic of operations a scalar function is what is needed. It will accept a usr_id and return the fullname of the user but scalar functions are extremely slow and gets worse as the number of rows in the base table increases. Here is the performance comparison for the same.

SELECT *
FROM fk_table f
LEFT OUTER JOIN pk_users u ON u.usr_id = f.usr_id

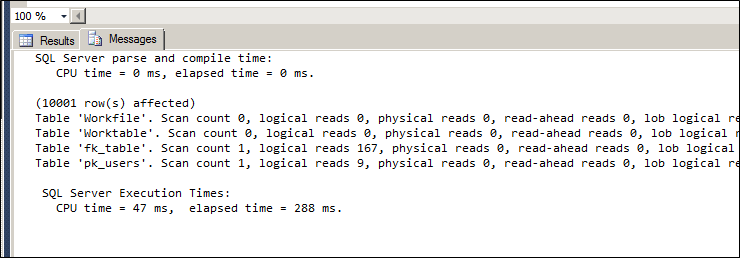

The above numbers are after three runs with clustered index on tranid and usr_id.

Now we create a scalar function to fetch the data.

SELECT dbo.fn_getusername(f.usr_id)
    ,f.*
FROM fk_table f

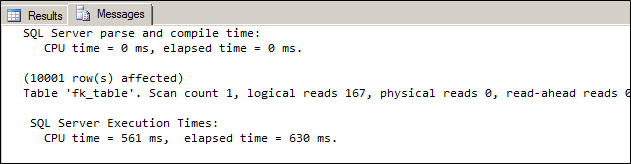

As you can see from the above screenshot scalar functions to bring a significant performance overhead , so we are now going to replace the same logic with a inline table valued function.

SELECT *
FROM fk_table u
OUTER APPLY fn_tblusername(u.usr_id) f

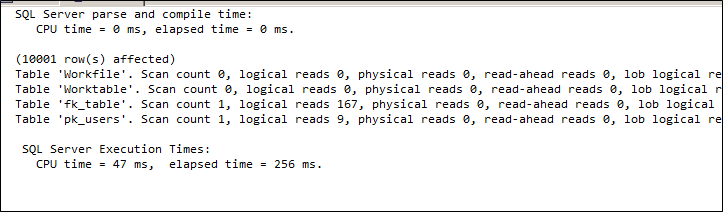

So as you can see from the above screenshots replacing with the table valued function gave me comparable performance as using an inline query without the row by row overhead of a scalar function. Which ultimately serves the purpose of being easy to reuse my code as well as get an acceptable level of performance.

Additional references

/****** CREATE THE REQUIRED TABLES ******/
CREATE TABLE pk_users (
    usr_id INT identity(1, 1)
    ,usr_name VARCHAR(100)
    ) GO

CREATE TABLE fk_table (
    tranid INT
    ,usr_id INT
    ,somedate DATETIME
    ,sometext VARCHAR(100)
    ) GO /****** INSERT TEST DATA ******/

INSERT INTO pk_users
SELECT cast(newid() AS VARCHAR(100)) GO 1000

INSERT INTO fk_table
SELECT round(rand() * 10000, 0)
    ,round(rand() * 10000, 0)
    ,getdate()
    ,replicate('a', 100) GO 10000 /****** CAPTURE STATISTICS ******/

SET STATISTICS TIME ON
SET STATISTICS IO ON

SELECT *
FROM fk_table f
LEFT OUTER JOIN pk_users u ON u.usr_id = f.usr_id GO /****** CREATE SCALAR FUNCTIONS ******/

CREATE FUNCTION fn_getusername (@usr_id INT)
RETURNS VARCHAR(100)
AS
BEGIN
    DECLARE @usr_name VARCHAR(100)

    SELECT @usr_name = usr_name
    FROM pk_users
    WHERE usr_id = @usr_id

    RETURN @usr_name
END GO

SELECT dbo.fn_getusername(f.usr_id)
    ,f.*
FROM fk_table f GO /****** CREATE TABLE VALUED FUNCTIONS ******/

CREATE FUNCTION fn_tblusername (@usr_id INT)
RETURNS TABLE
AS
RETURN (
        SELECT usr_name
        FROM pk_users
        WHERE usr_id = @usr_id
        ) GO

SELECT *
FROM fk_table u
OUTER APPLY fn_tblusername(u.usr_id) f
