Adding a Public IP to Azure

In this post I show how to get a new Public IP provisioned for use with Web applications from the Azure Management Portal. It all starts with an IP so let’s get started.

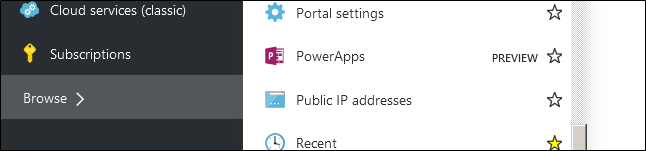

First click browse to see the services list and scroll down to Public IP Addresses

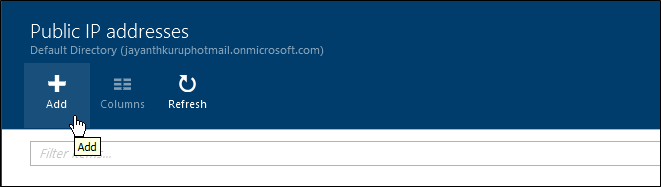

This will open a new windows and here on the Public IP addresses ribbon (the blue section on top) click Add.

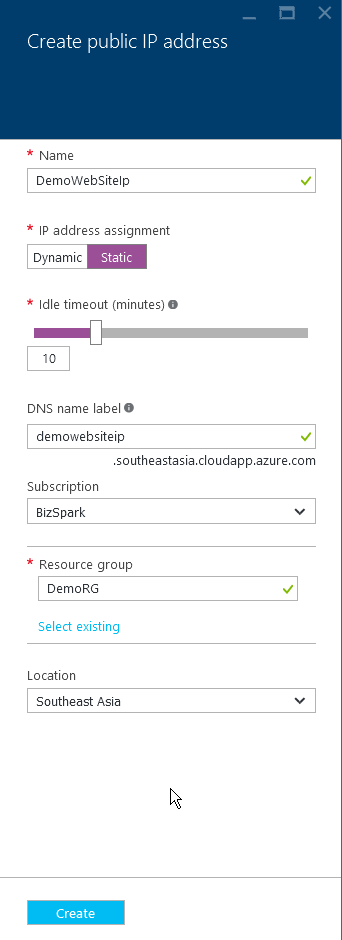

Enter the details as shown below

-The name is for your reference

-We need static IPs else the domain name will not always point to the correct IP after a change.

-Choose an appropriate idle time out based on your application.

-DNS label name is a unique name that is used to map this IP address with an Azure DNS cloud service.

-The subscription within which this IP is provisioned

-The Resource Group – a container for related Azure Resources.

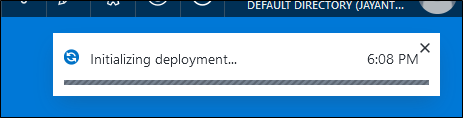

After pressing create you will see the below screen on the top right corner.

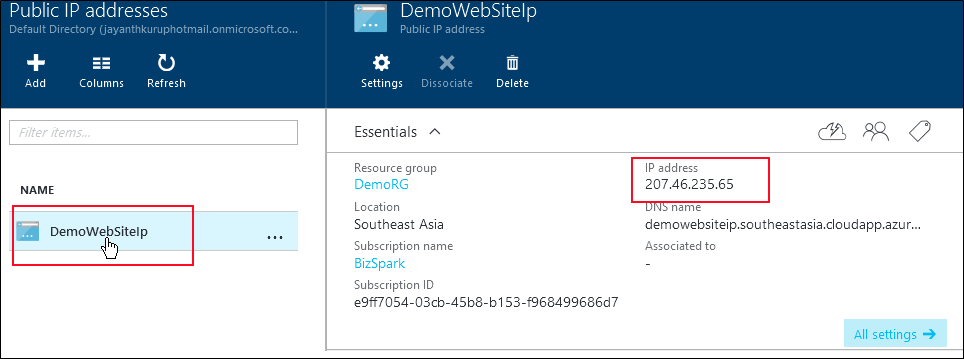

Once provisioned you will see the below screen where you can click the name of the Public IP Resource and see the IP A

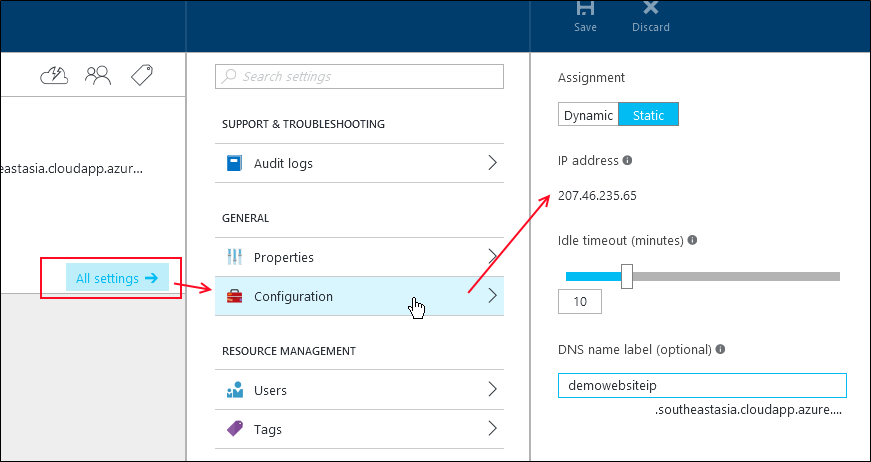

If you need to change any of the properties you can always click Settings as shown below
